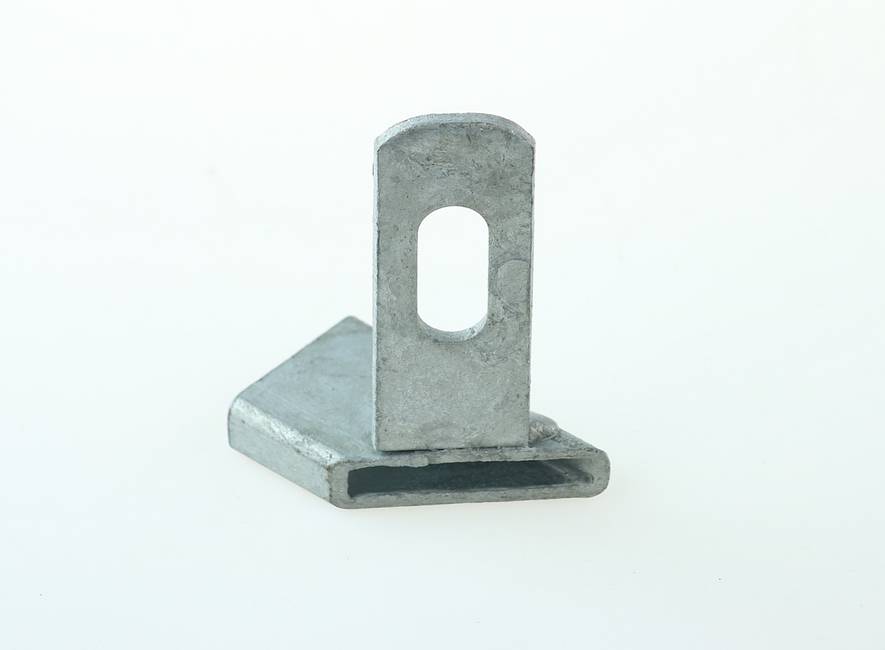

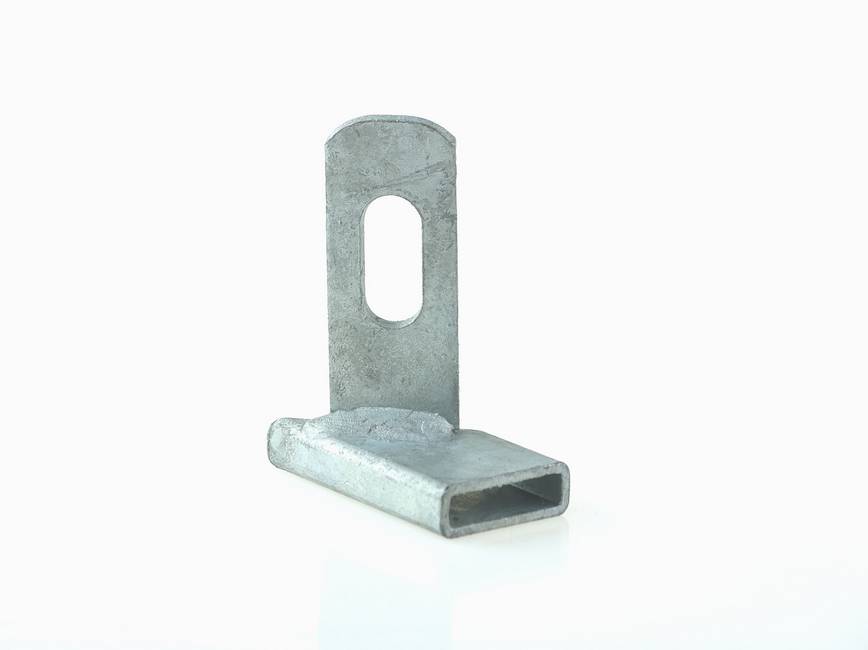

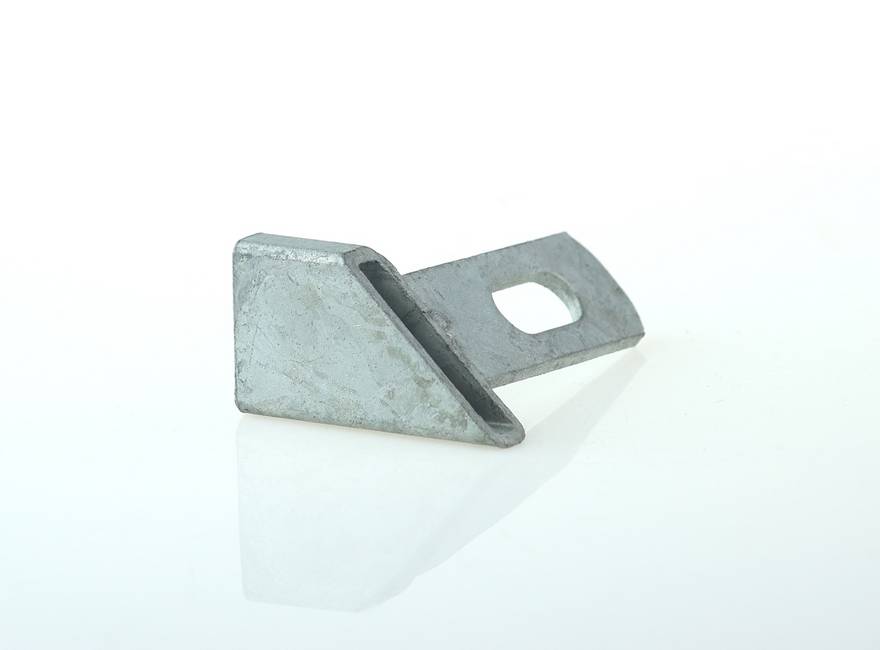

Adapter bracket right For electro forge-welded grating

Servizio di taglio al metro

Available
by the metre

Acquisto di campioni di materiale

Available
sample

Choose {{attribute.name}} dimension
Sourcing item: delivery will take longer (10/15 days)!
From
Unit price
4,93
{{measure_unit_name}}
Before
Quantity ({{measure_unit_name}}):
Minimum purchasing quantity: {{variation.min_quantity}}
Choose type of purchase
Choose dimension {{attribute.name}} and quantity to add to basket quantity to add to basket
Select an item to purchase
Only available in
  • {{country.name.Translations[0].text}}

Other characteristics
of the chosen item

  • Product code: GRI30-DESTRA
  • Item code: {{variation.code || '–'}}
  • {{attribute_key.translations[lang]}}: {{variation.attribute_values[attribute_key.code]}} {{attribute_key.mis_unit}}
Delivery with extra waiting

Delivery with extra waiting ({{ variation.slow_shipping_days }} days)

Special delivery on transport pallet

Special delivery
on transport pallet

Recommended applications

45 ° galvanized adapter bracket suitable to reproduce either a change of direction at 45 ° or a 90 ° angle when coupled with the same bracket but at left inclination in the fence in electroforged grid. The left or right direction is determined by looking at its own fence from the outside. In this case, the bracket attached to the pole is on the right side of the panel. Brackets suitable to be fixed to the appropriate posts / panel by means of nut and bolt.



Modular steel fencing complying with UNI EN 10025:2005, 63 x 132 mm rectangular mesh, 25 x 2 mm vertical plate and 5 mm horizontal bars united by electro fusion, 2000 mm spacing, hot dip galvanized to UNI ISO 1461.
Considered to be best grating produced in Italy and of premium quality, electro forge-welded grating panels are suitable for a multitude of applications and are ideally installed in industrial and residential locations.
The posts are flat with a 60 x 7 mm section and come already welded to the 60 x 120 x 7 mm base plate which has 2 holes for fixing to a wall with 10 mm bolts. All the bolts necessary for installation are 8 x 30 mm and in stainless steel.
Thanks to the adapter brackets you’ll be able to create a 45° angle while with the straight ones you’ll be able to create the end of the panel even if it has been cut.
To build your fence you need to consider the number of panels + 1 final post + 2 bolts and nuts for each post.

If, for example, you have 21 metres of fence with a 90° angle you will need: 11 panels, 12 posts, 24 bolts and nuts, 2 x 45° RHS adapter brackets x 45° LHS adapter brackets to create the corner and to straight adapter brackets to position the end panel having cut the last post.

If you have any doubts, don’t hesitate to contact us, we’ll give you all the indications you need to complete your purchase.

If you would prefer to cement your posts rather than bolt them, require special sizes or a different size mesh, please get in touch with us and we’ll give you all the information you require.
